Application of epoxy resin casting equipment: mainly used for resin encapsulation of high-voltage electrical appliances and other components such as dry-type transformers, transformers, bushings, insulators, etc.
Equipment performance characteristics:
1. The vacuum pouring tank not only meets the pouring size of the product, but also meets the production capacity requirements.
2. Vacuum pouring tank has heating function, working pressure:- 0.1Mpa atmospheric pressure (or positive pressure 0.2Mpa), can be used for both vacuum casting and vacuum pressure casting.
3. The heating temperature of the heat transfer oil in the mixing tank is uniform, and the PID temperature control is accurate.
4. The vacuum film degassing of the mixing tank and the automatic adjustment of the feeding motor speed ensure the efficiency and effectiveness of degassing.
5. The inner wall of the mixing tank, pouring pipeline, and pouring valve are made of stainless steel to reduce partial discharge.
Epoxy vacuum casting equipment
1. Raw materials can be used for mass production and customized according to the different needs of different users.
2. Suitable for production using raw materials and semi-finished AB materials, with no restrictions on degassing and mixing time.
3. The feeding amount of materials is automatically measured electronically and controlled by a programmable controller. The feeding process is carried out in a closed manner.
4. The computer cooperates with a programmable controller for operation and automatic control, and all links are interlocked and interlocked to avoid errors. The production process is recorded.
5. The materials are packaged in large quantities and added in an intelligent batching station. The transportation of poured products by shuttle trucks reduces labor intensity.
6. The control cabinet is equipped with an LCD display screen to display and control the process flow, making it convenient for operators to observe and operate.
7. The equipment layout is compact, and the supporting components have the same structure as world-class equipment. The maintenance and repair space requirements are low, and the overall appearance is exquisite.
|
|

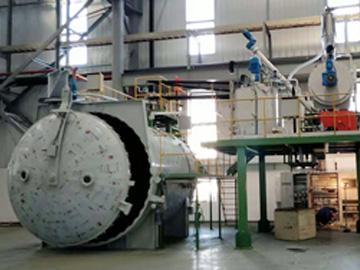

Epoxy vacuum casting equipment Images
|
